Cardiac patient monitor portable patient monitor multi parameter patient monitor modular patient monitor

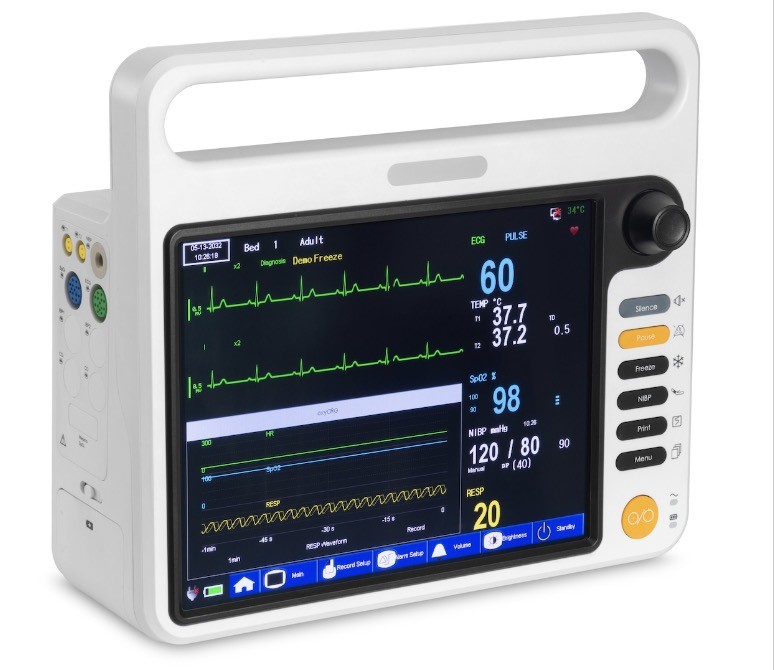

12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12

Cardiac Patient Monitor Quick Details:

1. 12.1 inch TFT LCD screen, 6 standard parameters

2. 32-levels sound volume adjustment

3. 10-levels brightness adjustment

4. Maximum 168 hours graphic and tabular trends of all parameters;

5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG

6. Maximum 20 hours continual working time (optional)

7. Touch screen (optional)

8. Masimo SPO2 module (optional)

9. EtCO2 module (optional)

10. 2IPB module (optional)

11. CO module (optional)

12. Suntech BP module (optional)

13. 8-language available (optional)

14. Printer (optional)

Hung-Kee Patient monitor Brochure 2022.01.pdf

Cardiac Patient Monitor Technical details:

Table EtCO₂ Specifications

( for more detailed technical data please refer to above PDF brochure)

Cardiac Patient Monitor Description:

The HighAcuity T12 portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity T12 offers an optional plug-and-play module structure for more advanced monitoring functions such as EtCO₂, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules. Integrated in each HighAcuity T12 patient monitor, 3 and 5- lead ECG, SpO₂, NIBP, respiration, and temperature, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.

Cardiac Patient Monitor Standard Accessories:

5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord

Cardiac Patient Monitor Optional Accessories:

Aluminum trolley, wall mount stand

FAQ for Cardiac Patient Monitor:

1.Q: How long is the warranty time?
A: 24 Months

2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.

3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.

4.Q: Do you work on OEM and SKD project?

A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.

5.Q:Can the monitors display wave-forms and numerical data?

A: Yes, can display wave-forms and numerical data.

6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.

7.Q:How many waveforms can be displayed on the screen?
A: The screen can display up to a maximum of 7 wave-forms.

8. Q: How to proceed an order for portable patient monitor or other medical equipment?

A: 1st let us know your requirements or application.

2nd We quote according to your requirements or our suggestions.

3rd customer arrange payment for formal order.

4th We arrange the production.

9.Q:Are the batteries a cost option?
A: No, the battery is included in the basic price of the system.

10.Q:Are You A Manufacturer Or Trading Company?

A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.

11.Q:What types of batteries are used?
A: Both systems use a high capacity built-in rechargeable lithium battery.

Hung-Kee (China) Electronic Technology Co., Ltd was established in 2003 with a clear focus on medical equipment research and development in mainland China. In 2008, the company expanded its operations by establishing Shenzhen Hung-Kee Medical Technology Co., Ltd as its subsidiary, responsible for manufacturing and marketing activities. With an exceptional R&D team boasting over 20 years of experience in the medical industry, Hung-Kee has successfully developed cost-effective, high-quality medical products that have gained global recognition.

Hung-Kee's commitment to becoming the most competitive medical supplier worldwide is evident in its portfolio of coveted medical goods, including human caring medical products and veterinary caring products. This dedication has propelled the company to surpass most competitors in China and become the world's most valuable technology company in this field.

To ensure continuous innovation and development, Hung-Kee has formed two separate R&D teams specializing in software and hardware development. Led by Mr. Kwok, who possesses 30 years of software development experience, the software team consists of 8 members. The hardware team, led by Mr. Sheng with 19 years of hardware development experience, consists of 5 members. As of 2021, the company has obtained 10 practical technology patents and 5 appearance patents, with ongoing efforts to secure additional patents each year.

Currently, Hung-Kee offers a comprehensive range of products across six product lines:

1) Multi-parameter patient monitors: This line includes portable patient monitors, fully and semi-modular patient monitors, cardiac patient monitors, neonate patient monitors, ICU cardiac monitors, and monitors in 8-inch, 12.1-inch, 15-inch and 17-inch sizes.

2) Veterinary multi-parameter monitors: Hung-Kee provides standard and semi-modular veterinary monitors in 8-inch, 12.1-inch, and 15-inch sizes, along with handheld SPO2 and EtCO2 monitors.

3) Vital sign monitors: The company offers desktop vital sign monitors, OLED fingertip pulse oximeters, handheld pulse oximeters, handheld EtCO2 and SPO2 monitors, cardio-output monitors, depth of anesthesia monitors or cerebral state index, intracranial pressure monitors, and rSO2 or cerebral oximetry or NIRS devices.

4) Gas detectors: Hung-Kee's gas detector line includes mainstream EtCO2 sensors, sidestream CO2 modules, and anesthesia main/side stream multi-gas modules.

5) Emergency devices: The company provides an automatic tourniquet system (A.T.S.) for emergency situations.

6) Fetal Monitor: model PoloView 10F, 10.4 inch high grade fetal monitor specially designed for fetal monitoring.

7) Electrocardiograph machine: model PoloHert E3, 3-channel high grade ECG machine

8) Telemedicine: Hung-Kee offers a Remote Medical Caring Cloud Platform with bedside monitoring terminals to support telemedicine practices.

Hung-Kee aims to be a professional medical device supplier in the fields of R&D, OEM, ODM, CM (contract manufacturing), and SKD services. The company strives to establish long-term partnerships and be recognized as a reliable and loyal industry collaborator.

As Hung-Kee continues to innovate and enhance its product offerings, expect to see more new items in the near future, all developed with fully owned intellectual property. The company is dedicated to delivering added value to esteemed partners worldwide and solidifying its position as the world's leading provider of cost-effective, high-quality medical products.
